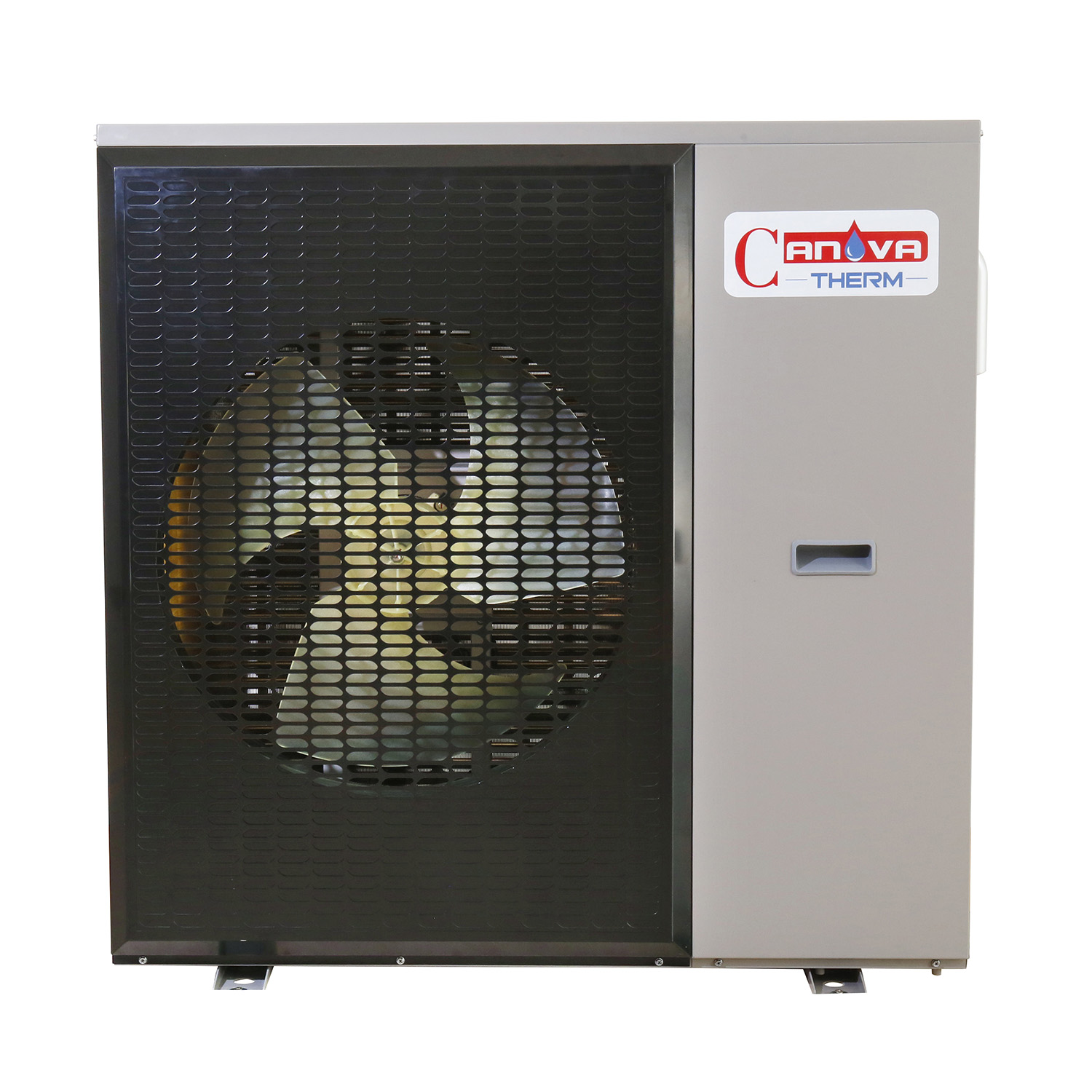

KFV200-B/E
CANOVA
This series-Full Dc Inverter Heat Pump is splendid for domestic central heating and cooling with fan coil units,which its water pump built in.The water tank connection with this heat pump does not have copper coil heat exchanger inside,which saves the cost of water tank.
DC inverter heat pump can reduce more starting time than normal heat pumps.It also can adjust the operating speed of the compressor and fan to extend the working life of the machine.
| Model | KFV200-B/E | KFV240-B/E | KFV400-B/E | KFV480-B/E | ||
| ErP Level(35ºC) | A+++ | A+++ | A+++ | A+++ | ||
| ErP Level(55ºC) | A++ | A++ | A++ | A++ | ||
| Heating (A7/W35) | capacity range | KW | 3.7-8.6 | 4.2-10.3 | 5.1-12.2 | 5.6-15.6 |
| input power range | KW | 0.75-2.06 | 0.87-2.52 | 1.05-2.93 | 1.15-2.76 | |
| Heating (A7/W45) | capacity range | KW | 3.2-7.3 | 3.8-9.3 | 4.5-10.6 | 5.1-14.5 |
| input power range | KW | 0.98-2.47 | 1.18-3.18 | 1.38-3.59 | 1.57-4.95 | |
| Cooling (A35/W7) | capacity range | KW | 2.5-6.0 | 3.2-8.6 | 3.92-10.8 | 3.95-12.6 |
| input power range | KW | 2.5-6.0 | 3.2-8.6 | 3.92-10.8 | 1.19-4.47 | |
| Power Supply | 220V~230V/1PH | 220V~230V/1PH | 380V~415V/3PH | |||
| Controller | LCD Wire Controller | |||||
| Compressor | DC Inverter Twin Roary | |||||
| Condensor | Brazed Plate Heat Exchanger | |||||
| Pipe connector | G1'' external thread | |||||
| Air flow | m3/h | 2700 | 2900 | 4000 | 5000 | |
| Max outlet heating medium temperature | ℃ | 25-70 | ||||
| Refrigarant | R290 | |||||
| Noise | dB(A) | ≤59 | ≤64 | ≤65 | ≤67 | |
| Dimension | mm | 1060*420*1014 | 1060*420*1014 | 1060*420*1014 | 1060*420*1037 | |
| Weight | kg | 106 | 106 | 112 | 132 | |
Features
Hybrid solar connection(optional)
Panasonic compressor with R290 refrigerant.
Heating + Cooling + Hot water
Anti-freezing work in -35 degrees low temperature.
Thermostatic heating element for evaporator and anti-frosting protection.
Energy-saving 80%.
Automatic defrosting function included (With reverse valve inside).
Water pump installed inside.
