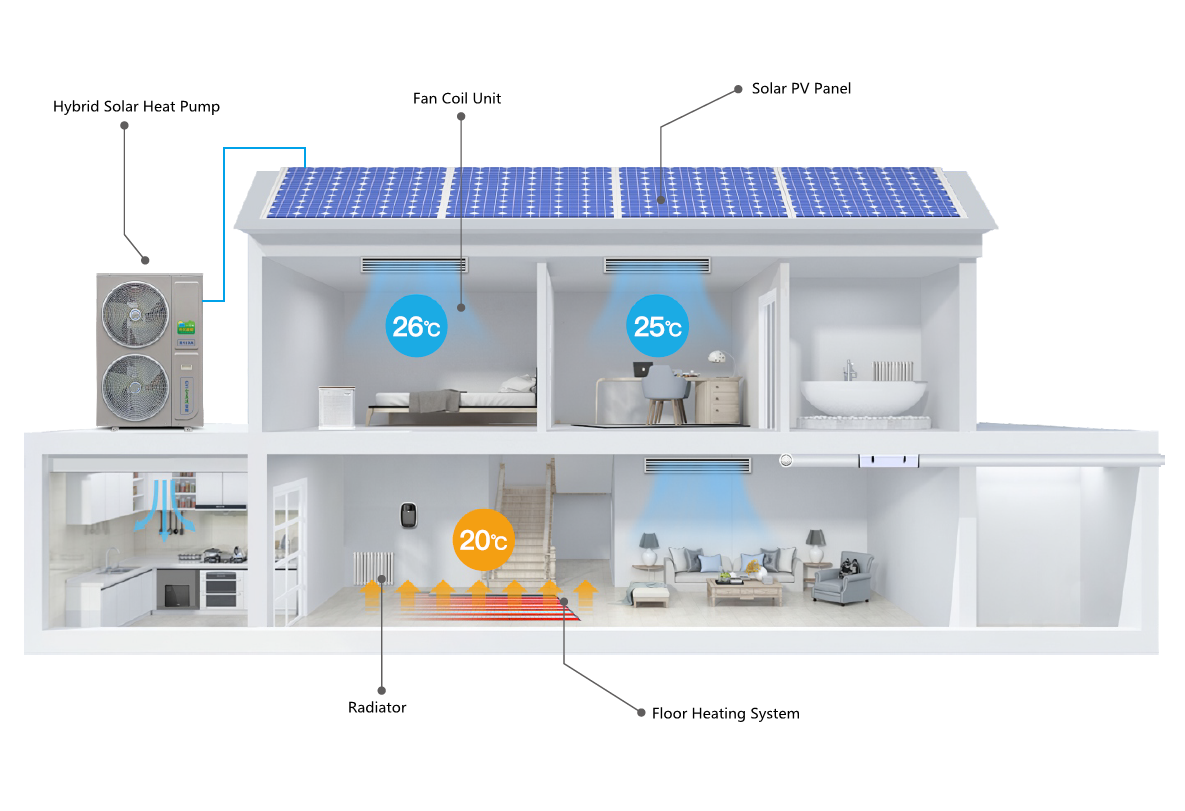

Hybrid Solar Standard DC Inverter Heat Pump
Model			KFV240-A/H	KFV480-A/H	KFV480-A3/H	KFV640-A/H	KFV800-A/H	KFV960-A/H
Electricity Consumption		W	8~2500	8~5500	8~5500	108~8500	108~9000	108~11500
Solar PV Max Voltage		V	340	340	340	340	340	340
Solar PV Power		KW	4.5	6	6	9	10	12
Heating(A20/W15~55)	Capacity	KW	12.1	23.5	23.8	29	35.5	45
	Heated water output	L/H	260	505	512	628	763	972
	Input Power	KW	2.88	5.53	5.59	6.87	8.39	10.71
	Current	A	14.5	27.9	9.4	11.6	12.9	18.1
	COP		4.2	4.25	4.26	4.25	4.23	4.22
Heating (A7/W35)	Capacity	KW	3.7~10.5	7.97~20.5	8.05~20.7	9.9~26.5	11.4~29.5	13.1~40.5
	Input Power	KW	0.8~2.47	1.7~4.78	1.71~4.81	2.11~6.16	2.43~6.88	2.79~9.69
	Current	A	4.1~12.5	8.6~24.1	2.9~8.1	3.6~10.4	4.1~11.6	4.7~16.63
Heating (A7/W45)	Capacity	KW	3.8~10.7	8.02~20.8	8.08~20.91	10.2~26.8	11.6~29.8	13.3~40.6
	Input Power	KW	0.99~2.85	2.08~5.53	2.09~5.55	2.63~7.02	3.01~7.82	3.45~10.81
	Current	A	5.1~14.4	10.5~27.9	3.5~9.3	4.4~11.8	5.1~13.2	5.8~18.2
Cooling (A35/W7)	Capacity	KW	2.6~7.5	6.2~13.8	6.5~14.1	7.2~16.5	7.8~18.6	9.1~23.5
	Input Power	KW	0.85~2.63	2.03~4.89	2.12~4.98	2.35~5.83	2.53~6.53	2.97~8.36
	Current	A	4.3~13.3	10.2~24.7	3.6~8.4	4.1~9.8	4.3~11.1	5.1~14.1
Power Supply			220V~230V/1PH		380V~415V/3PH
Frequency Range		Hz	30-85	30-85	30-85	30-85	30-85	30-85
ERP (35℃)			A++	A++	A++	A++	A++	A++
ERP (55℃)			A+	A+	A+	A+	A+	A+
Heating output water temp		℃	25~60
Cooling output water temp		℃	5~20
Refrigerant			R410A / R32					R410A
Controller			LCD wire controller
Compressor	Brand		Panasonic					Hitachi
Compressor	Type		DC Inverter Twin Rotary
Fan motor	Type		DC Inverter
Fan motor	PC		1	2	2	2	2	2
Evaporator	Type		Hydrophilic Aluminum Finned Heat Exchanger
Water side heat exhanger	Type		High Efficient Tube in Shell Heat Exchanger
Water side heat exhanger	Pressur Drop	kPa	40	45	45	50	50	55
Throttle unit			Electronic Expantion Valve
Ambient Temp range		℃	-30~45
Water flow		m3/h	2.1	4.0	4.1	5.0	6.1	7.7
Pipe size			DN25	DN32	DN32	DN32	DN32	DN32
Noise		dB(A)	≤56	≤61	≤61	≤63	≤65	≤69
Dimension		mm	960370810	9403701360	9403701360	10603831562	10603831562	11564561650
Weight		kg	75	120	125	150	165	210

Heating test condition 1: Ambient temp.(DB/WB)=20℃/15℃, Inlet/Outlet water temp.=15℃/55℃

Heating test condition 2: Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Cooling test condition : Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃

· Self-developed and patented technology

· Famous America Copeland Compressor

· The water temperature can be up to 80ºC

· No emission of hazard gas such as CO2

· Intelligent LCD digital controller

· Saving cost as high as 60%~80% compared with oil boiler,gas boiler,coal boiler, electricity water heater etc

· Automatic defrosting function included. (With reverse cycle valve inside)

45KW Hybrid Solar Standard DC Inverter Heat Pump
