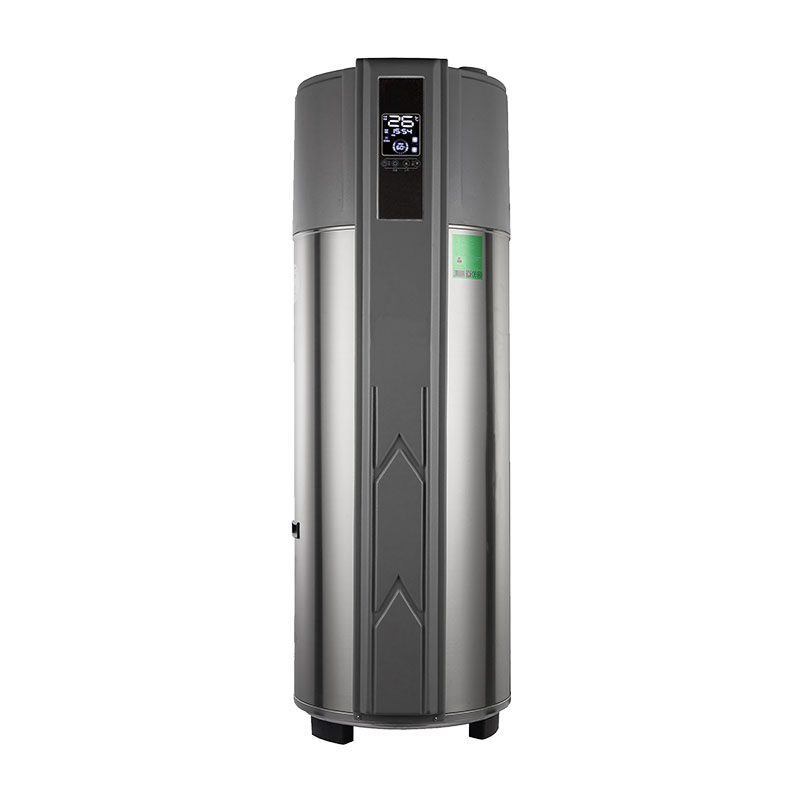

All in one heat pump is designed for domestic sanitary hot water.AS a lovely equipment,it could be put indoor.It is with 3 times higher efficiency than that of gas boiler or electrical heater and it can also be conbined with solar heating system.Therefor this could reduce costs for the users in a big way.
Model | KH80-A/150L | KH80-A/200L | KH80-A/250L | KH80-A/300L | |
Heating capacity | Kw | 2.8 | 2.8 | 2.8 | 2.8 |
COP | 3.5 | 3.5 | 3.5 | 3.5 | |
Water tank volume | L | 150 | 200 | 300 | 300 |
Rated heated water output | L/h | 60 | 60 | 60 | 60 |
Rated outlet water temp | ºC | 55 | |||
Max outlet water temp | ºC | 60 | |||
Rated power input | w | 800 | 800 | 800 | 800 |
Rated current | A | 9.6 | 9.6 | 2.4 | 3.8 |
Electric heater power | w | 2000 | |||
Tank inner material | A | Duplex/SS304 | |||
Power supply | V/Hz | 220~240/50 | |||
Compressor type | R410A/R134A Rotary compressor | ||||
Number of compressor | 1 | ||||
Heat exchanger type(water/air side) | External coil/Fin heating exchanger | ||||
Throttling device | Electrical expansion valve | ||||
Fan type | Low noise high efficiency axial fan | ||||
Fan discharging | Top with 5m exhaust pipe | ||||
Fan input | W | 200 | |||
Fan speed | RPM | 920 | |||
Ambient temperature | ºC | 0~43 | |||
Noise | dB(A) | ≤43 | |||
Water pipe size | mm | G3/4'' | |||
Cabinet | Galvanized powder coated steel | ||||
Low pressure protection system | Yes | ||||
High pressure protection system | Yes | ||||
Automatic defrosting syetem | Yes | ||||
Net weight | Kg | 81 | 87 | 93 | 103 |
Product dimension | mm | φ560*1500 | φ560*1700 | φ560*1970 | φ650*1800 |
Optional:
· Solar coil
· hot water,house heating
· SS304 /Duplex /Enamel water tank(optional)
